Docomo Phones by LG
Check the dumping hardware overview for a list of known preservation hardware.
If you need help, please come chat with us on the Keitai World (previously Keitai Wiki) discord server.
Introduction
LG
600i/700i/800i Series
| Phone Model | Extractable? | File System (Main Storage) | FTL (Flash Translation Layer) |
|---|---|---|---|
| L600i | – | – | – |
| L601i | – | – | – |
| L602i | – | – | – |
| L704i | JTAG | – | – |
| L705i | JTAG | – | – |
| L705iX | JTAG | – | – |
| L706ie | – | – | – |
| L852i | JTAG | – | – |
Late FOMA
| L-01A | – | – | – |
| L-02A | – | – | – |
| L-03A | – | – | – |
| L-04A | – | – | – |
| L-05A | – | – | – |
| L-06A | – | – | – |
| L-07A | – | – | – |
| L-01B | – | – | – |
| L-02B | – | – | – |
| L-03B | – | – | – |
| L-04B | – | – | – |
| L-01C | – | – | – |
| L-03C | – | – | – |
| L-06C | – | – | – |
| L-10C | – | – | – |
JTAG Pinouts

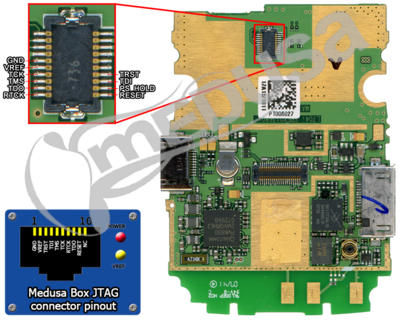

L704i

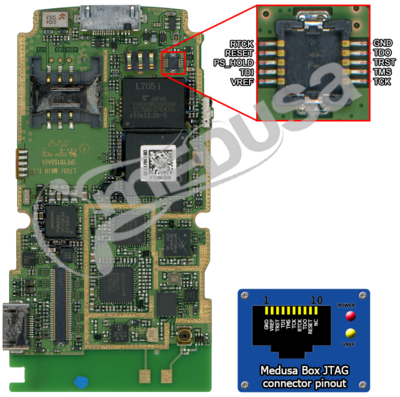

L705i
